SPECIFICATIONS

Application: Light, Bulb, LED,Lamps, Fan, Door, Gate, Pump and so on

Application scenario: Home, Farm, Factory, Office, Supermarkets and so on

Brand Name: QIACHIP

Certification: ce,None,None,CE

Choice: yes

Current: 10A

Features: 433Mhz rf Wireless Remote Control Switch can be pasted

High-concerned chemical: None

Is Smart Device: No

Item Type: SWITCHES

Material: Plastic

Model Number: WP8601-1W switch and KR2201G receiver

Origin: Mainland China

Remote Distance: More than 50 meters in open area

Switch Type: REMOTE CONTROL

Warranty: 1year

semi_Choice: yes

QIACHIP Wireless Smart Switch Light RF 433Mhz Wall Panel Switch with Remote Control Mini Relay Receiver 220V Led Light Lamp Fan

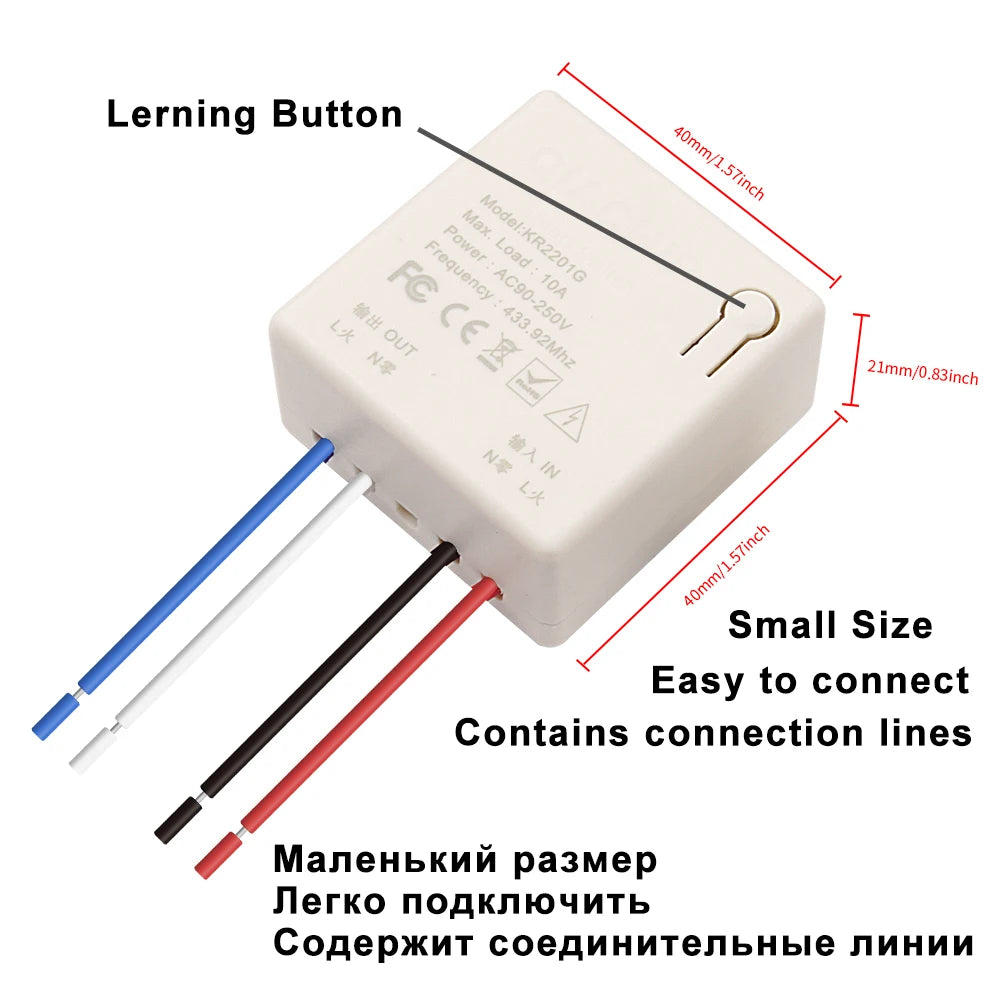

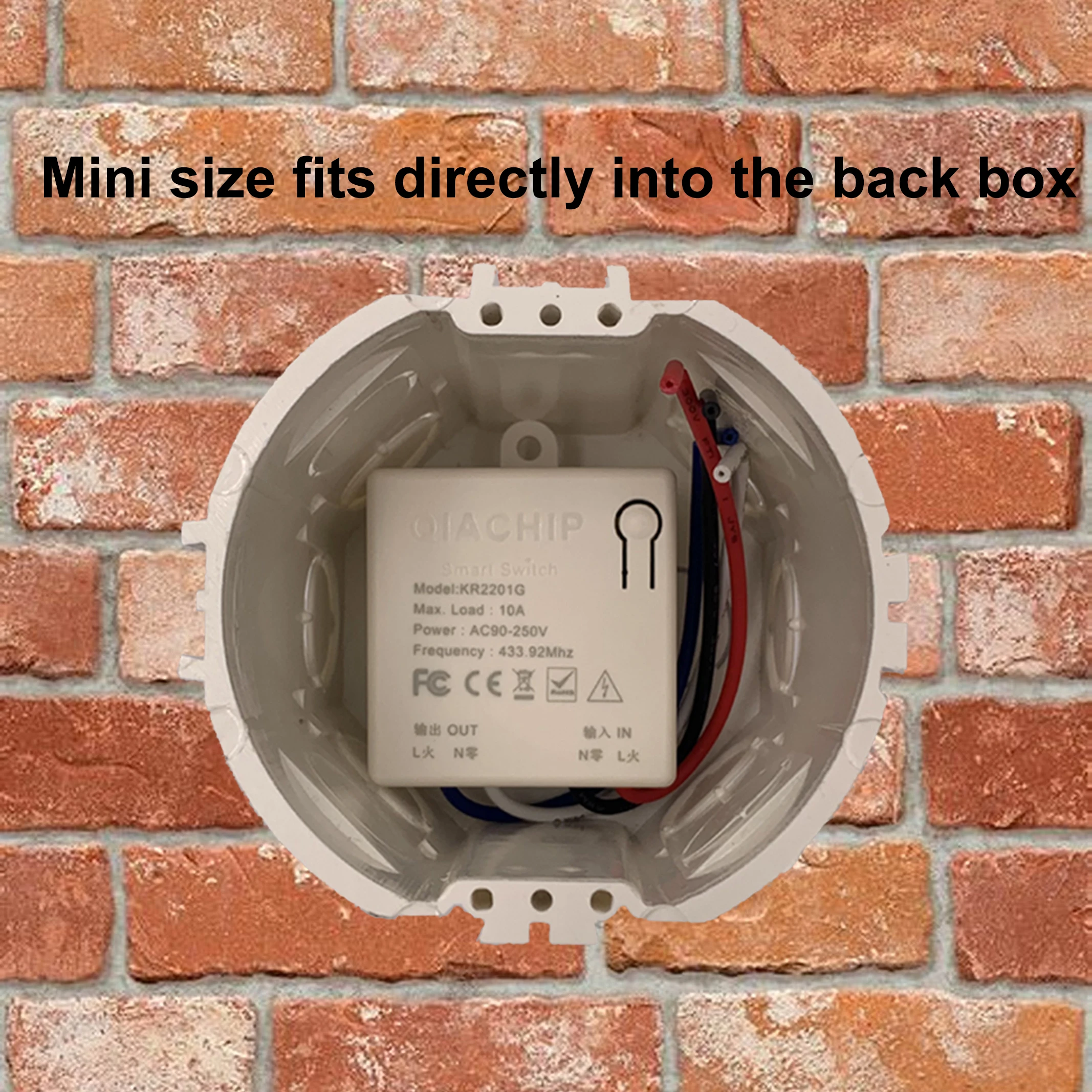

MINI Body Size

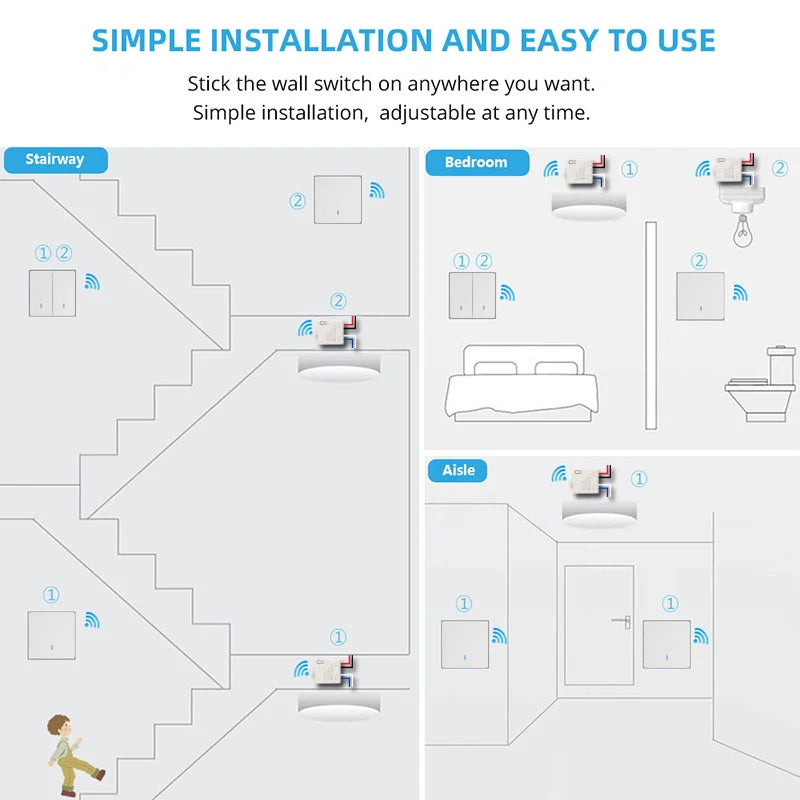

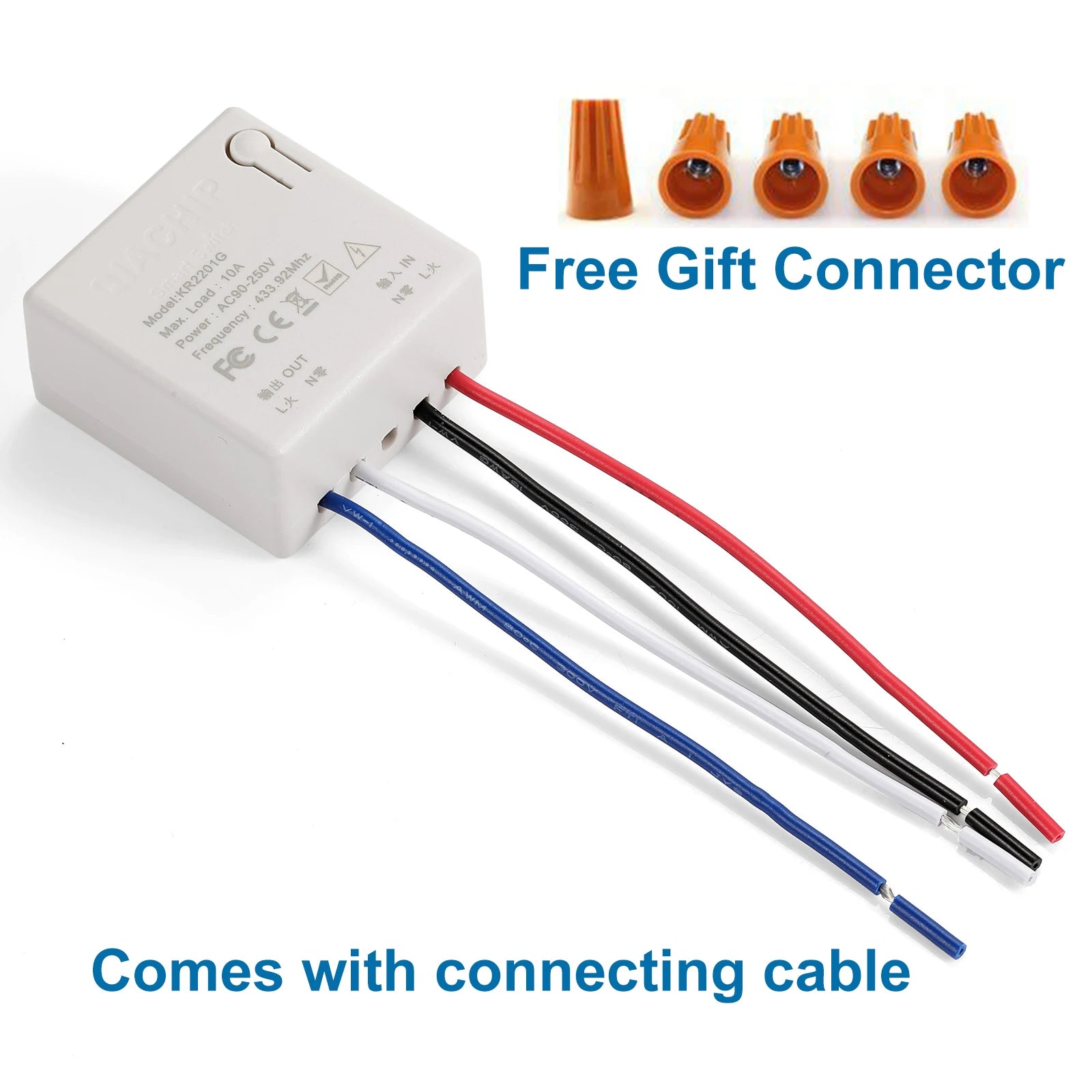

Easy to install

RF Output of Good StabilitySimple to Use

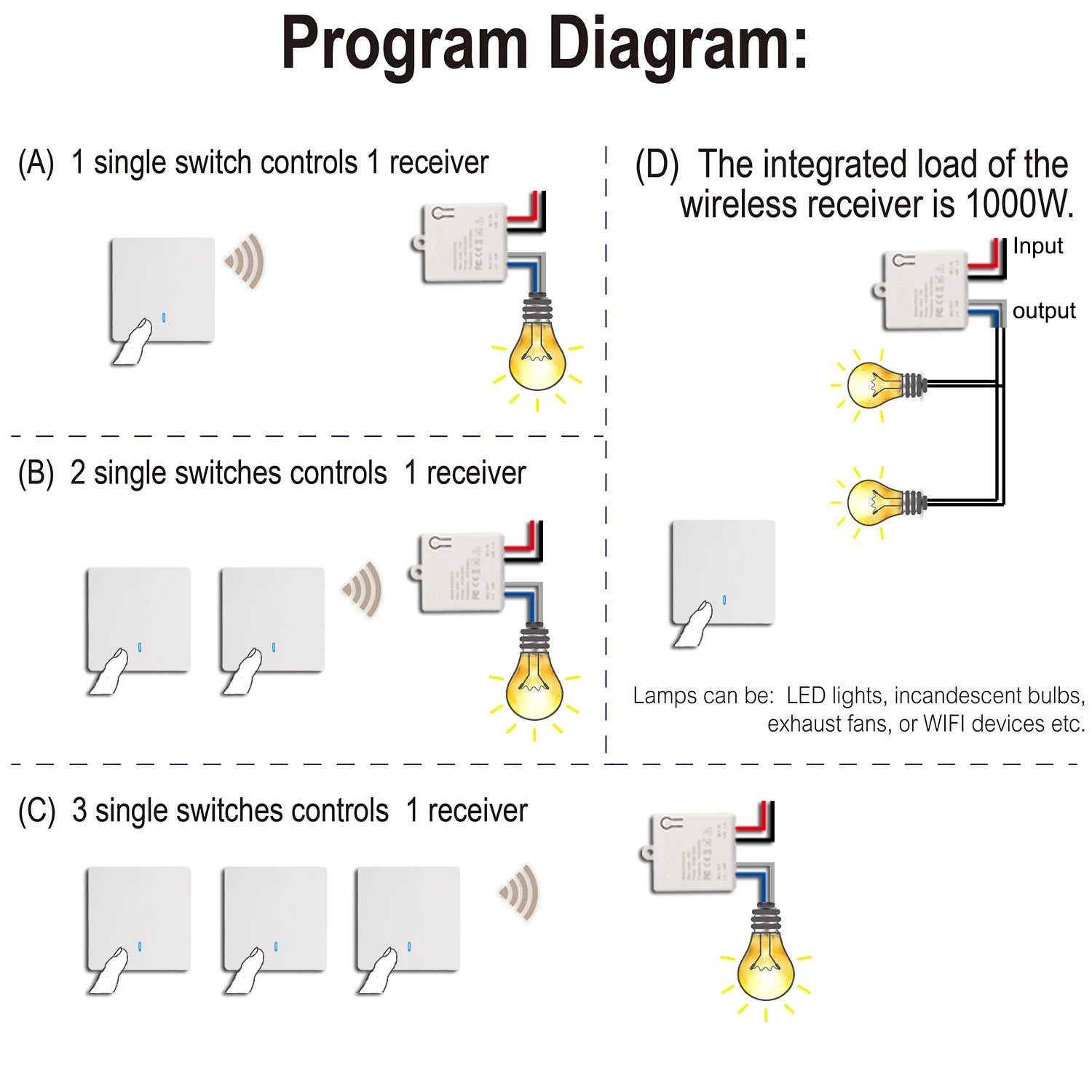

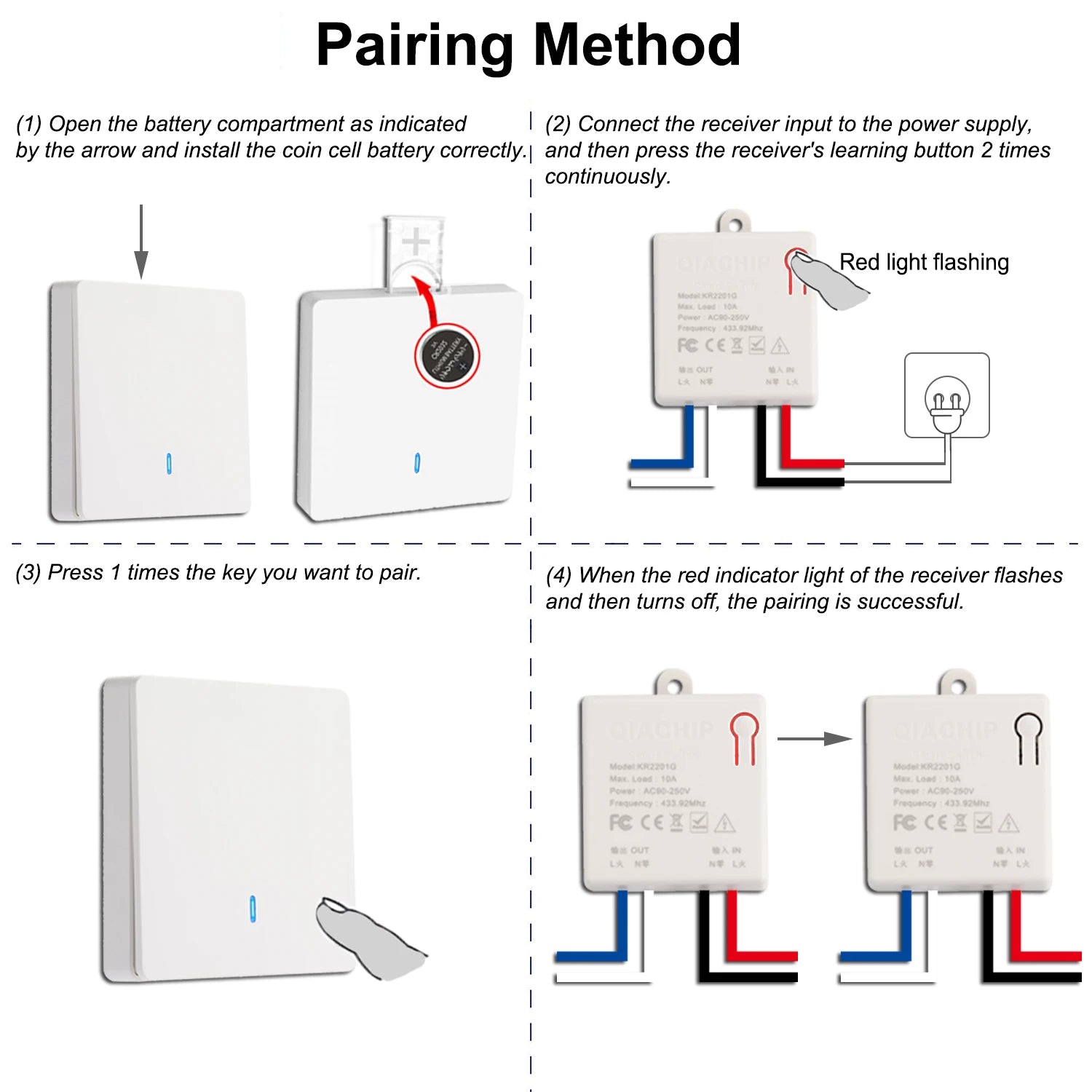

Easy pairing

（1）Open the battery compartment as indicated by arrow and install the coincell battery corectly.

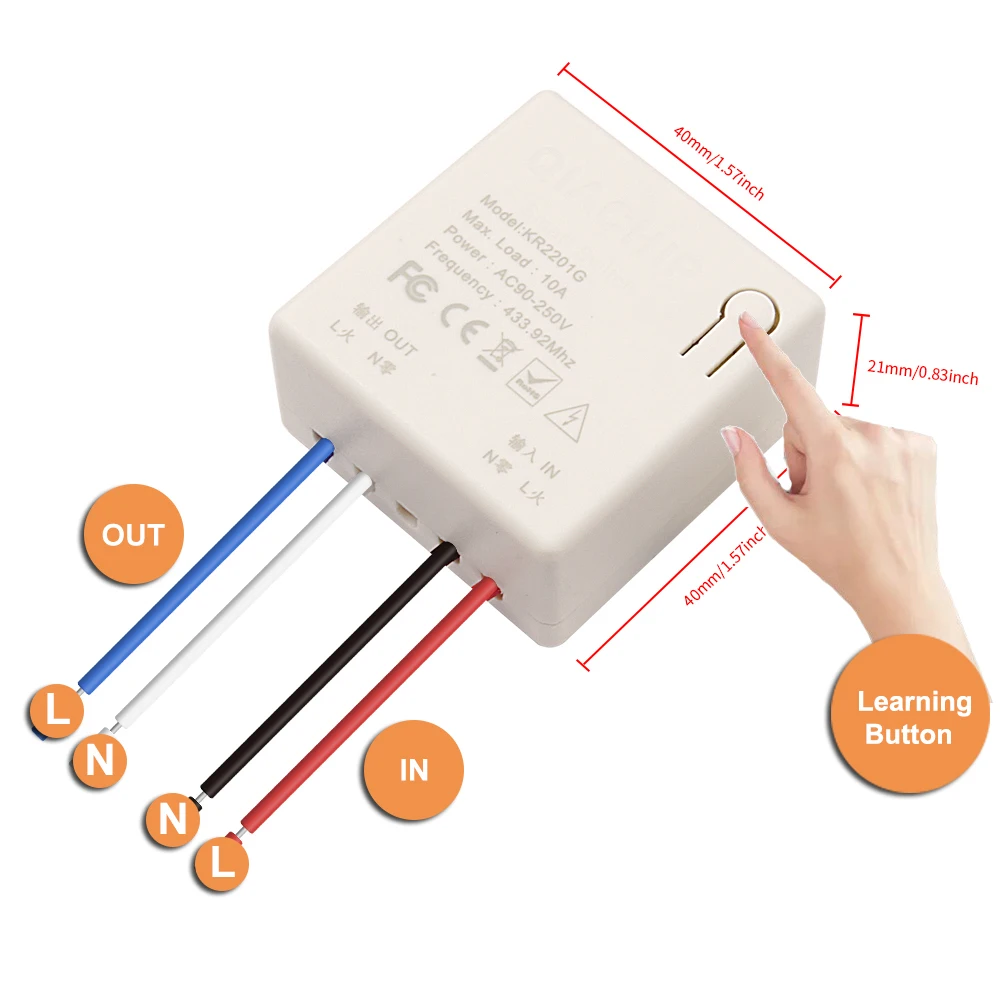

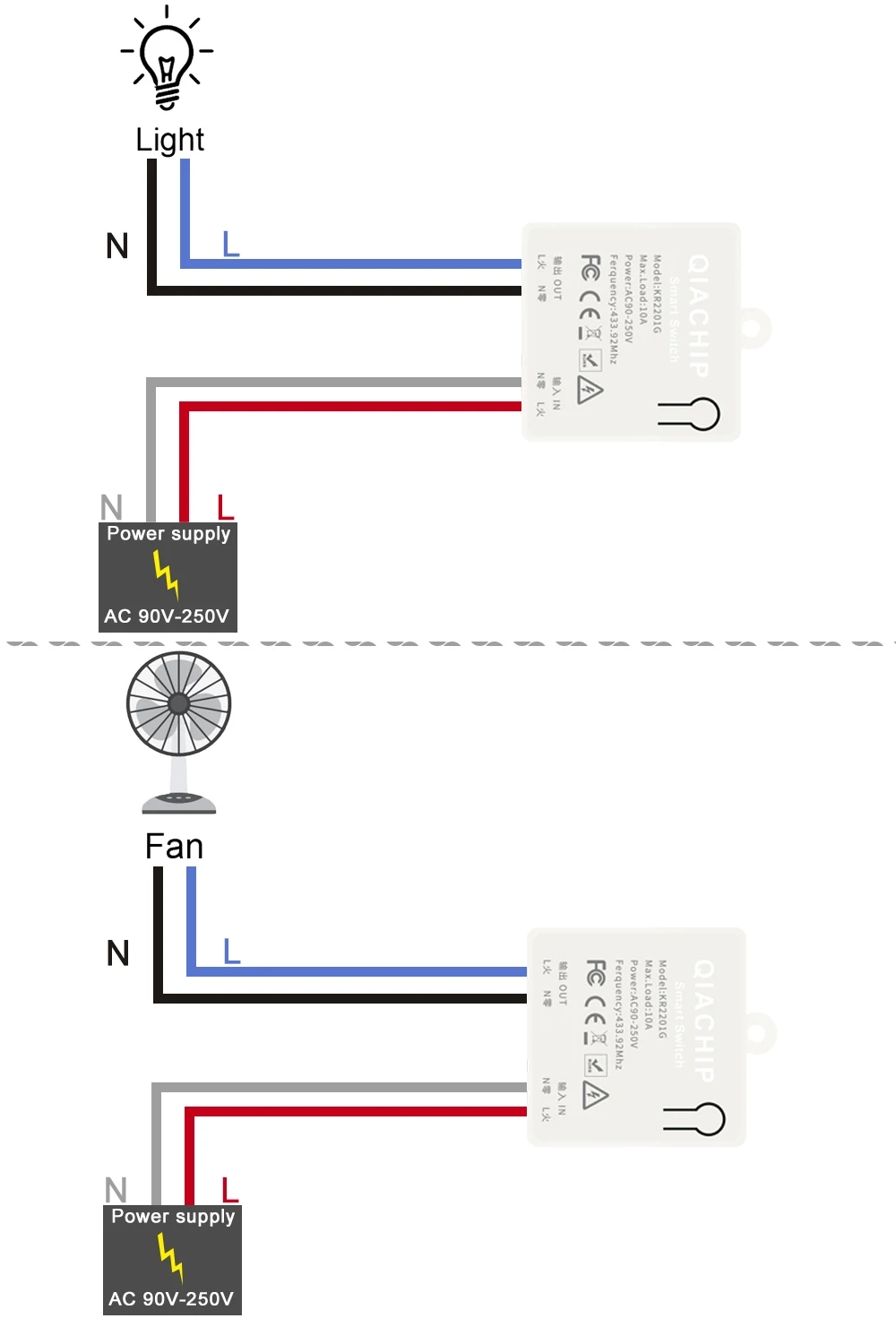

（2）Connect the receiver input to the power supply, then press the receiver's learning button 2 times continuously.

（3）Press 1 times the remote panel switch key you want to pair.

（4）When the red indicator light of the receiver flashes and then turns off, the pairing is successful.

Reset
Press the learning button (on the Receiver) 8 times. The existing data will be deleted succeed.

Product Detail

Working voltage  :  AC 90V~250V
Quiescent Current  :  <5MA
Max current  :  10A
Max load  :  2200W
RF frequency  :  433-433.92MHz
Working temperature  :  -30~+80
Receiving Sensitivity  :  >108 dbm
Amount of storage remote controls  :  25 pieces
Support encoding  :  1527 Leaning code,2262 fixed code
RF Operating mode  :  ASK superheterodyne wireless reception

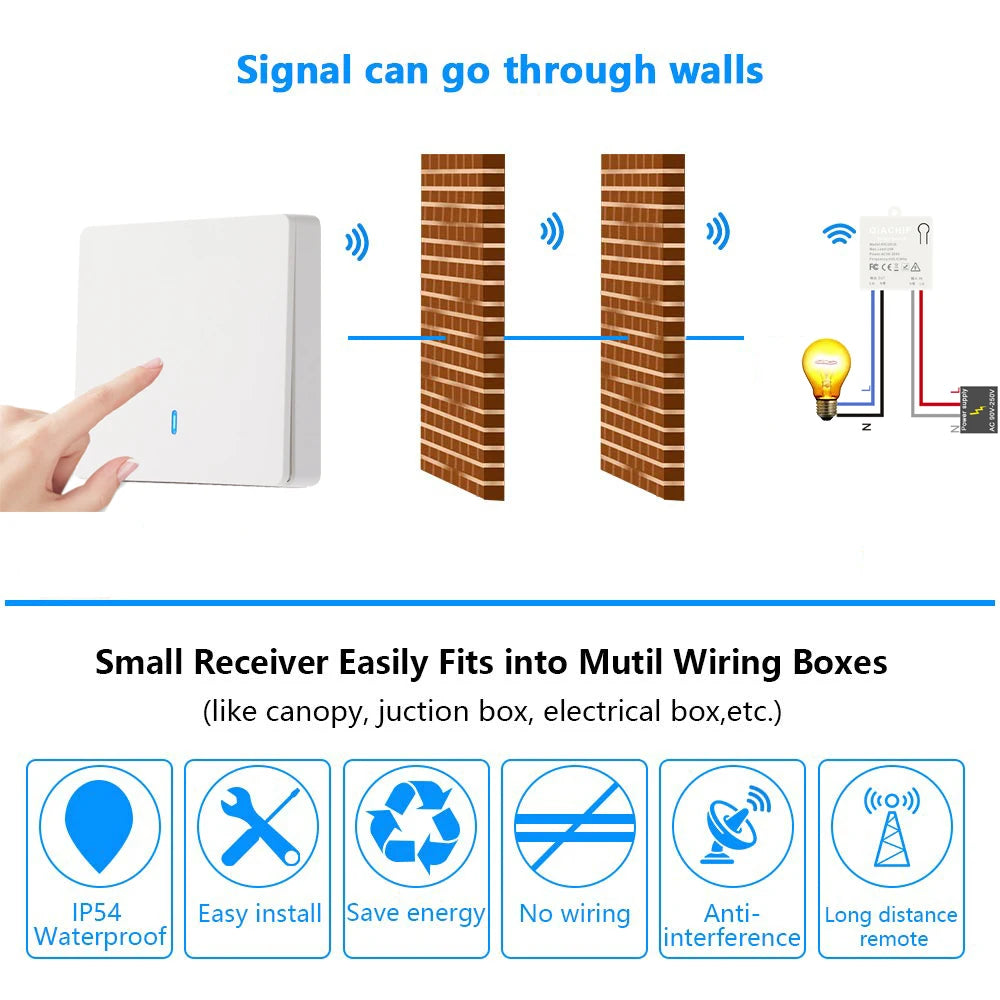

Receiving range  :  Open space is more than 50 meters,Indoor partition wall 15 meters
Wall switch size: 86 standard size

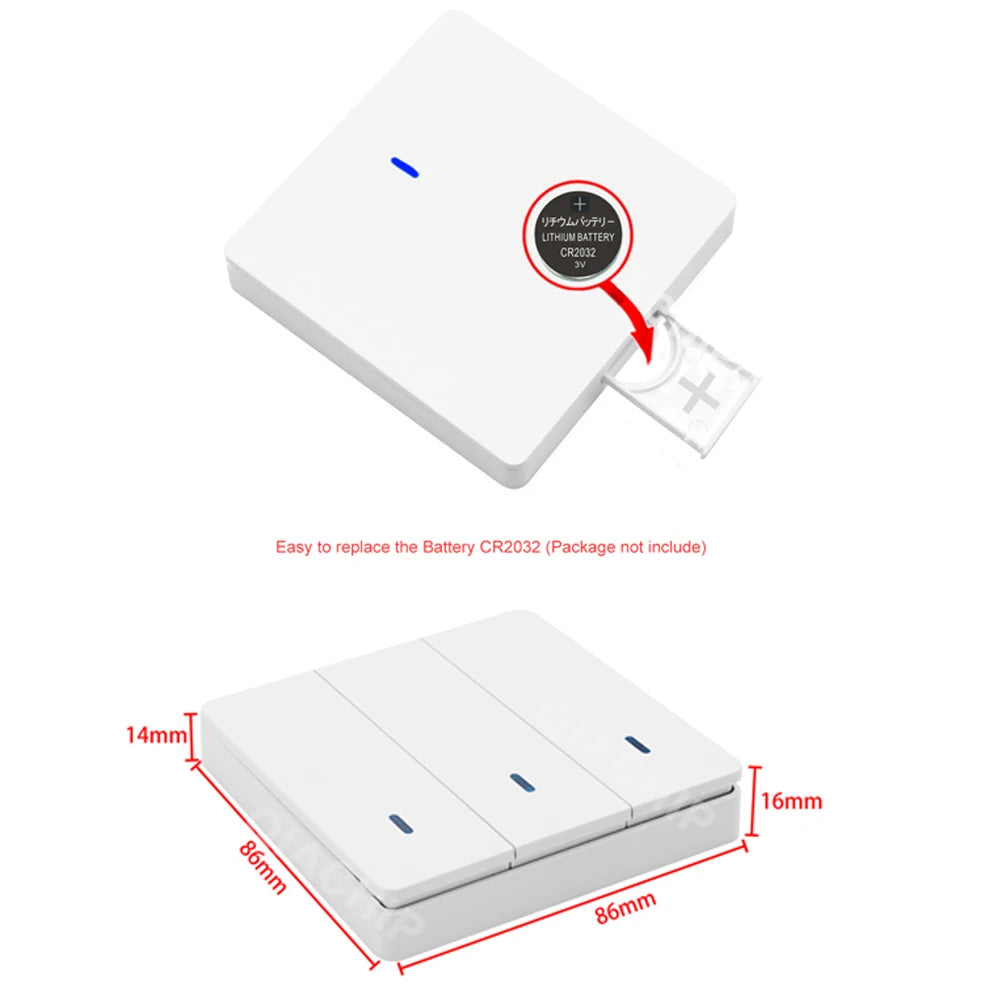

Switch battery :  1  pcs CR2032 coin cell battery (not include)
