Descriptions

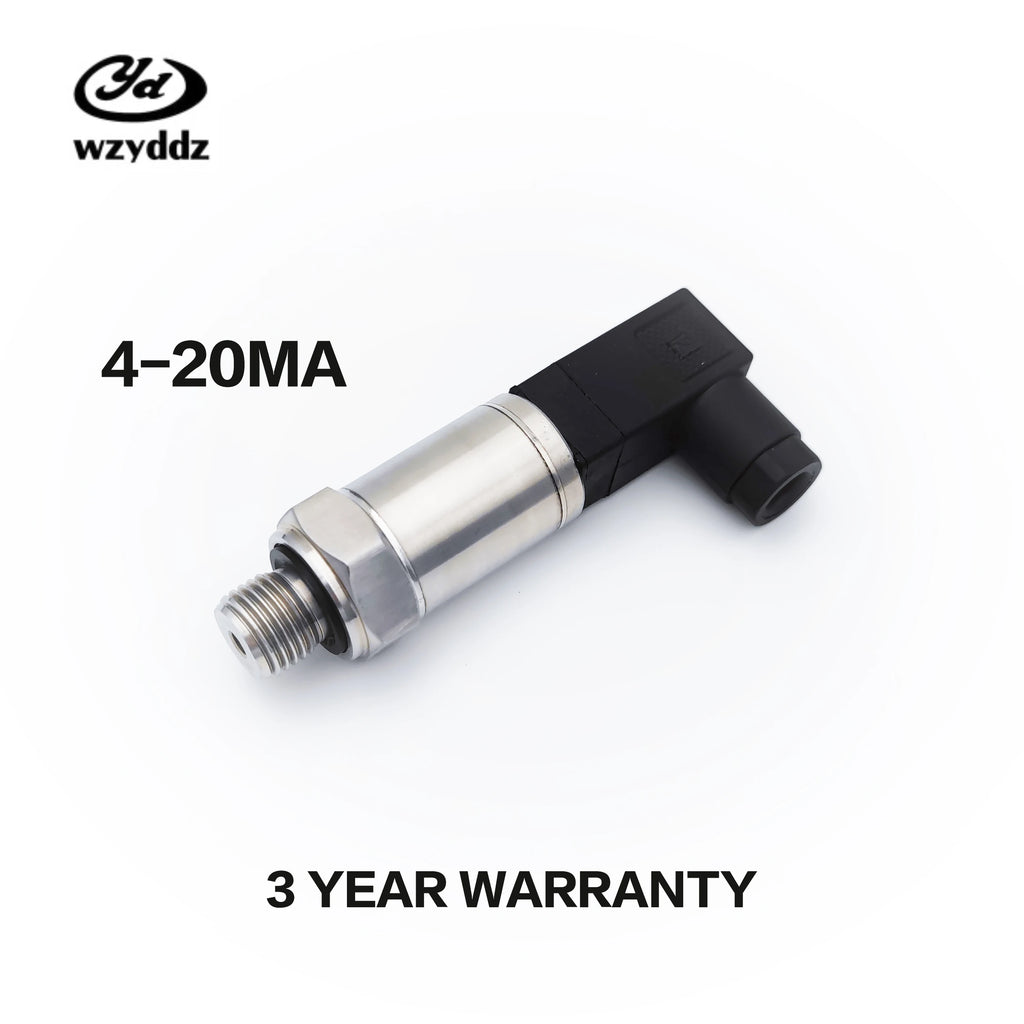

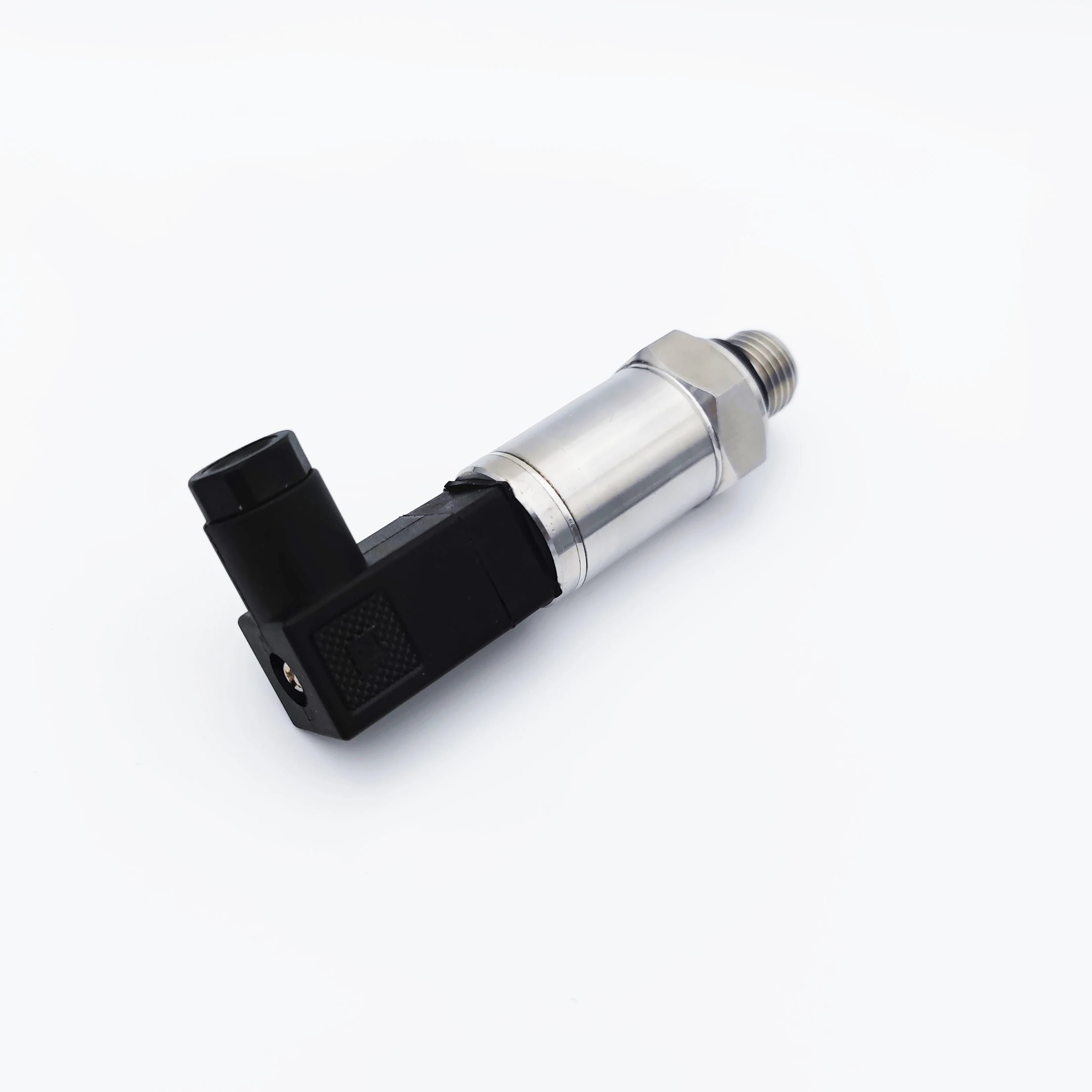

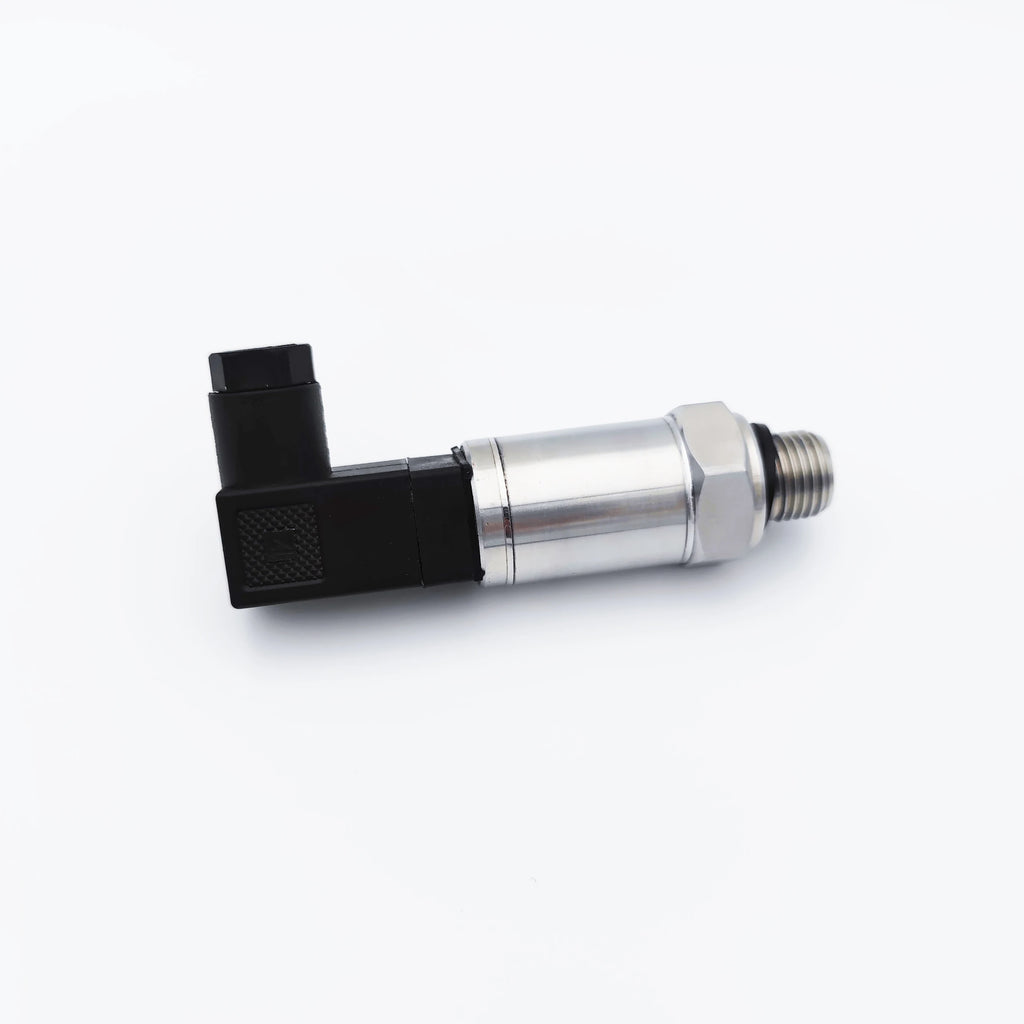

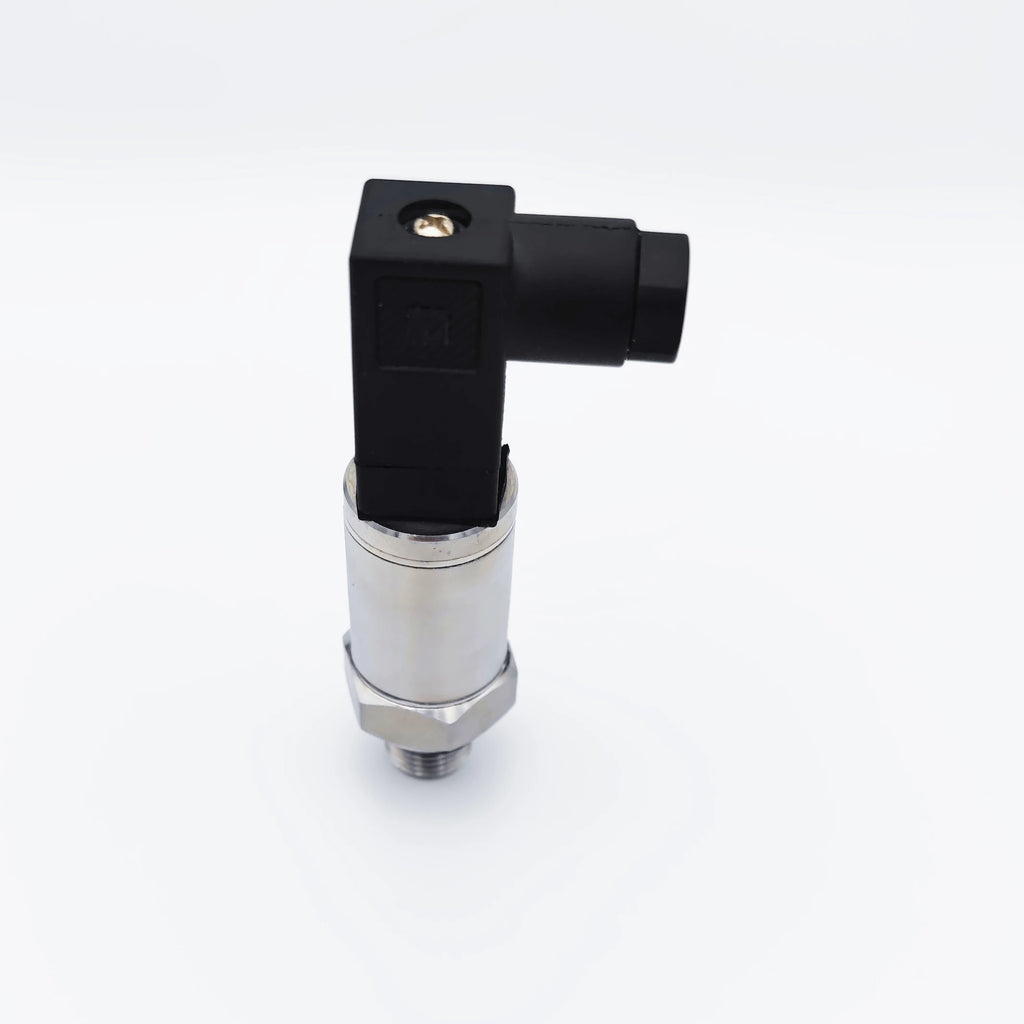

YD6090 series of pressure transmitters adopts the international advanced piezoresistive sensing technology to produce, can be selected depending on the application different sensing core, all stainless steel package, suitable for most media, with good long-term stability, multiple signal outputs to choose from, it can be used in various environments and climates, so it is widely used in various fields.

Features

◆ CE conformity
◆ Low cost and high quality
◆ All stainless steel integrated structure
◆ Small size, convenient to install and operate
◆ 4-20mA, 0.5-4.5V, 0-5V, 0-10V, I2C, various voltage
output
◆ Complete surge voltage protection function
◆ For applications such as air, water, oil
◆ Provide OEM, flexible customization

Applications

◆ Intelligent IoT constant pressure water
supply
◆ Engineering machinery, industrial process
control and monitoring
◆ Energy and water treatment systems
◆ Steel, light industry, environmental protection
◆ Medical, agricultural machinery, testing
equipment
◆ Flow measurement equipment
◆ Hydraulic and pneumatic control systems
◆ Air-conditioning unit and refrigeration
equipment
◆ Water pump, air compressor pressure
monitoring

Parameters

Measuring range: 0～600Bar
Accuracy: ±1.0%FS
Output signal: 4-20mA (2 wire)
Supply voltage: 12～36(24)VDC
Operating temperature: -40～105℃
Compensation temperature: -20～80℃
Operating current: ≤3mA
Temperature drift (zero&sensitivity): ≤±0.03%FS/℃
Long-term stability: ≤±0.2%FS/year
Response time: ≤3ms
Overload pressure: 150%FS
Burst pressure: 300%FS
Cycle life: 500,000 times
Pressure medium: Non-corrosive liquid or gas

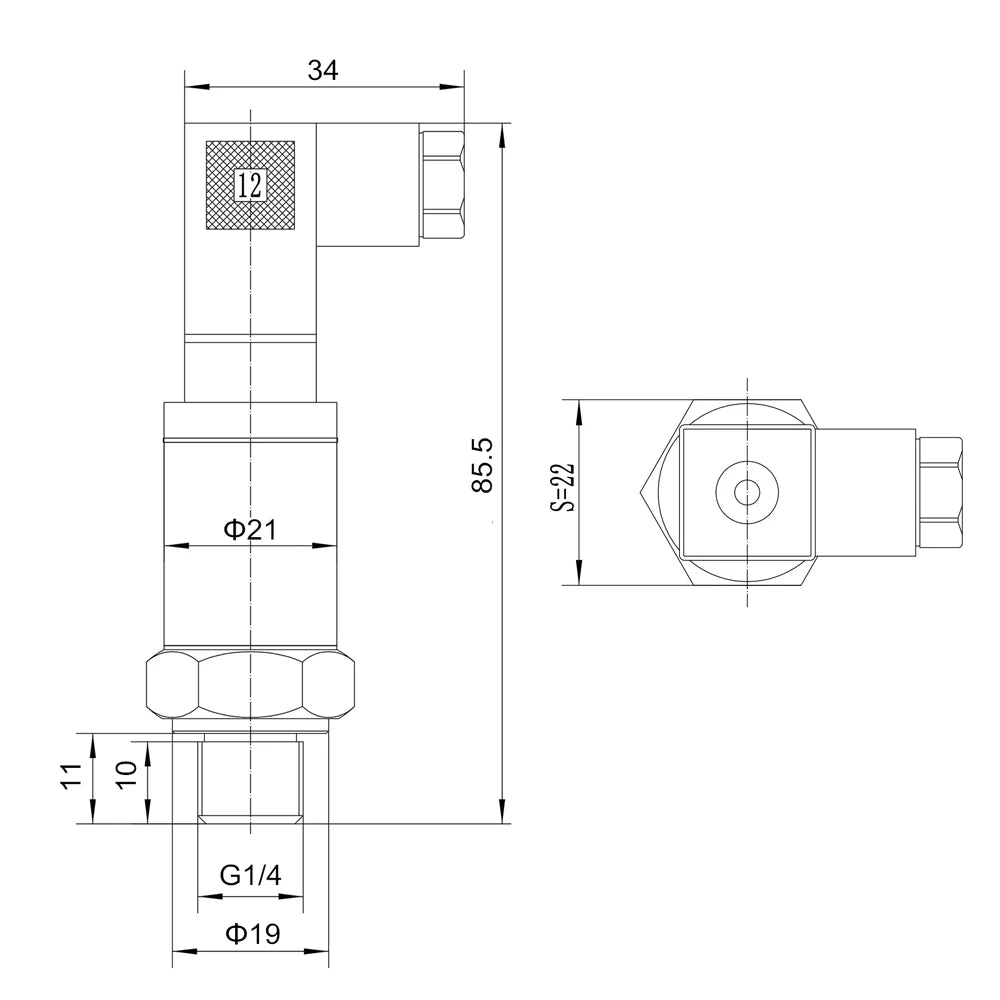

Pressure connection: G1/4, Other pressure connection is on request

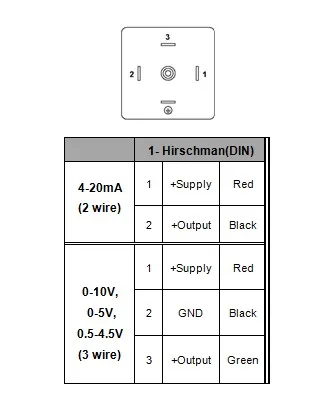

Electrical connection: Hirschman DIN43650C
Housing material: 304 Stainless Steel
Protection class: IP65
Explosion-proof class: ExiaⅡCT6
Weight: ≈0.120kg
